Reduce MIM/PM Tooling and Unit Costs

A practical way to balance geometry, annual volume, tooling amortization, tolerances and secondary operations — before the tool is built.

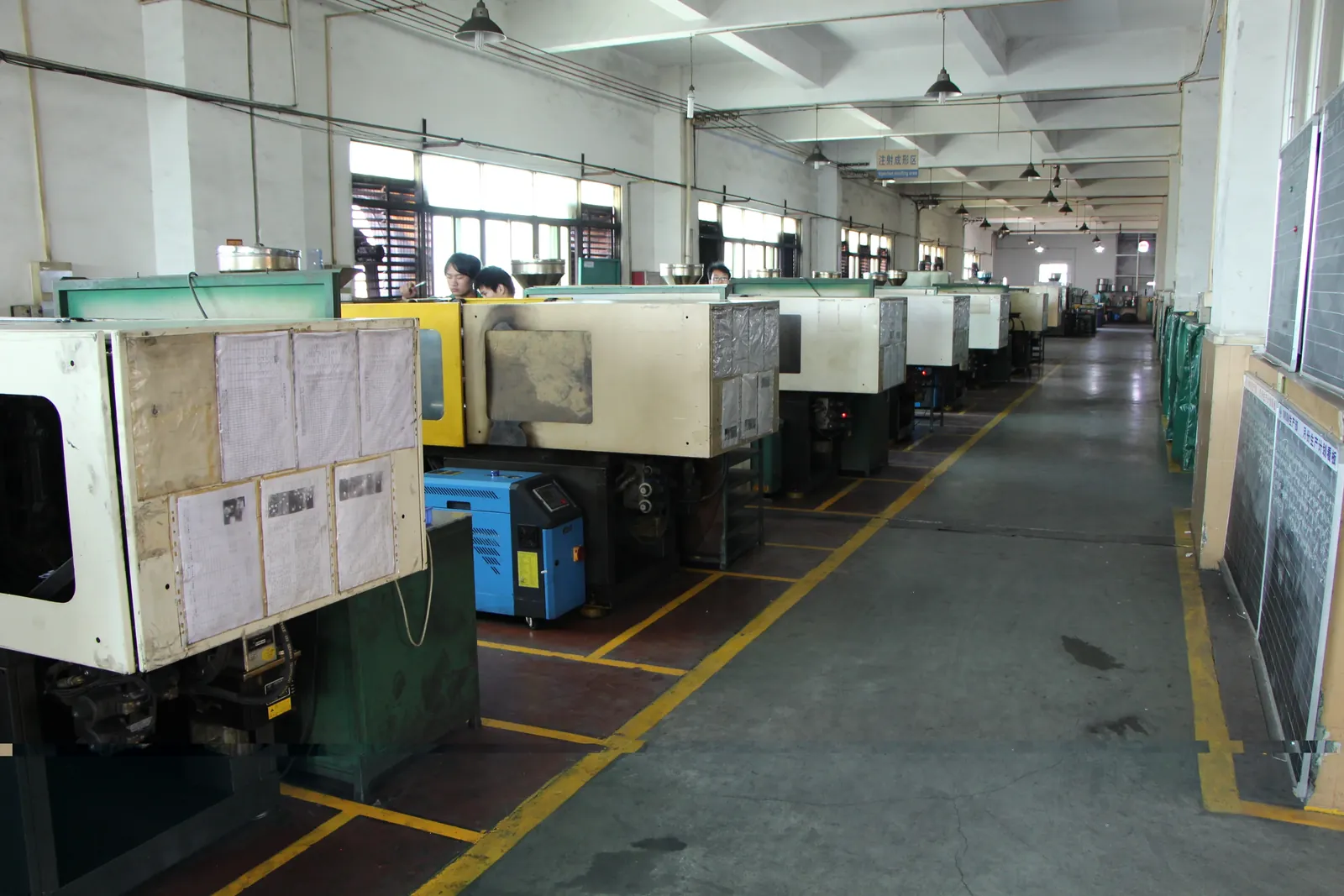

Metal injection molding machine in production

Cost planning for a small metal part starts before the tool is designed. The drawing, annual quantity, material, critical features and inspection plan together determine whether MIM, powder metallurgy, CNC or a hybrid route will be economical and reliable over the life of the program.

This guide walks through the levers that actually move program cost — tooling amortization, geometry, volume, tolerances, secondary operations and RFQ quality — with the questions SINTS engineering asks when a customer wants a lower landed cost per part.

1. Separate tooling cost from unit cost

Tooling is an upfront investment; unit cost repeats with every part. Comparing a quoted piece price without the tooling and secondary-operation picture is how programs end up with a low part cost and a high total cost. The right comparison is total program cost over the expected production horizon:

Tooling amortization Divide the tool investment by the planned production quantity. A tool that looks expensive at 5,000 parts per year is often the cheapest option at 500,000. Always state the annual volume and forecast horizon when asking for a route comparison.
Recurring cost drivers Material, cycle time, deburring, secondary machining, coating or heat treatment, inspection, packaging and any customer-specific documentation. These repeat for the life of the program and usually outweigh tooling in the long run.
Program risk A cheaper tool with a higher failure or rework rate is not a saving. Tool steel selection, action count and expected tool life should be stated so the quote reflects a tool that can actually hold the annual volume.
Total-cost review The practical method: compare MIM, PM, CNC and hybrid routes on the same horizon, including tooling, unit price, secondary operations and inspection. The lowest total cost route may not be the one with the lowest unit price.

A useful habit is to write the expected program quantity and its confidence level on the RFQ. A forecast of 100,000 parts that is really 20,000 changes the recommended route entirely, and the supplier cannot make that judgment call for you.

2. Simplify geometry without losing function

Geometry is where the biggest cost difference between a well-designed part and a difficult one is created. MIM and PM both form geometry in a cavity, so features that complicate the cavity, the ejection or the compaction repeat their cost in the tool and in every part.

The goal is not to weaken the part, but to remove complexity that does not earn its cost. The table below shows the features SINTS reviews first when a drawing is cost-sensitive:

Consistent wall thickness Uniform walls fill and cool predictably, reducing warp, sink and reject risk. Where thickness must change, transition gradually instead of stepping from thick to thin.
Draft where ejection needs it Molded parts need practical draft on walls that slide against the cavity. Adding draft at the drawing stage is free; adding it after sampling is a tool change.
Fewer slides and lifters Every side action adds tool steel, moving parts and wear risk. Redesigning an undercut as a two-piece assembly or a post-machined feature can remove a whole tool action.
Clear datum strategy Define datums on features that are formed in the same cavity, and keep critical tolerances between features produced in the same process step to avoid tolerance stacking.

The same discipline applies to cosmetic requirements. Separating faces that are critical-to-function from faces that are purely cosmetic lets the supplier run the cosmetic areas as-molded and concentrate machining where it matters, which keeps both tool and unit cost under control.

3. Let volume guide the process

Higher repeat volume generally makes tooling-based processes more attractive, but volume alone does not make a part suitable for MIM or PM. The route should fit both the quantity and the geometry:

MIM Usually considered for small, complex three-dimensional components — internal cavities, threaded features, fine detail — in stainless or alloy grades, where the as-molded geometry saves secondary work.
PM Often stronger for repeatable gears, bushings and structural parts that are largely two-dimensional, where the press-and-sinter route delivers consistent density and low unit cost at high volume.
CNC Low-volume work, prototypes and rapidly changing programs may remain better served by machining, where no tooling investment has to be recovered and design changes are cheap.
Hybrid MIM or PM to net shape, with selective CNC finishing on sealing faces, threads and critical bores. Often the lowest total cost when a part is mostly moldable with a few high-precision features.
Powder metallurgy bevel gear, a typical volume-driven PM part
Repeatable gear geometry is where powder metallurgy earns its unit cost. The same part at low volume may be cheaper to machine.

The key question is not “which process is cheapest?” but “which process holds this geometry at this volume with the required quality?” A part that is well suited to the process will always quote better than a part that is forced into one.

4. Control tolerance and inspection scope

Every tight tolerance adds process, tooling or measurement cost. A drawing that specifies general tolerances everywhere — and critical tolerances only where fit and function demand them — is the cheapest drawing you can send.

  • Identify the dimensions that control fit and function: mating bores, press-fit diameters, gear teeth, sealing faces. These get the tight tolerance and the inspection attention.
  • Use practical general tolerances elsewhere: cosmetic and non-mating dimensions do not need ±0.05 mm, and specifying them forces the supplier to add a risk allowance to the whole part.
  • State the measurement method and sample plan: CMM, gauge, first-article report, dimensional sampling frequency. The supplier can then price the real requirement instead of an avoidable worst case.
  • Understand what the process holds: MIM and PM dimensional capability is well documented — a reference such as the MIM tolerances guide shows what is achievable as-molded versus what needs secondary machining.

Tolerance decisions interact with process selection. A feature that needs ±0.01 mm on a molded part will be machined, not molded. Calling it out honestly at the RFQ stage lets the route comparison include that operation instead of discovering it at sampling.

5. Choose the material for the property, then optimize it

Material cost is a large share of unit cost in MIM and PM, and it is driven by the grade rather than by the process. The cheapest way to reduce material cost is to select the grade that meets the requirement — no more, no less.

  • Corrosion and food contact point to stainless grades such as 316L or 17-4PH; a low-alloy steel will not substitute.
  • Hardness and wear can be met by a low-alloy grade with heat treatment, often at lower material cost than a stainless option.
  • Magnetic properties are material-driven: soft-magnetic alloys or controlled stainless grades behave differently, and the grade must be selected for the requirement.
  • Weight reduction through wall thinning only helps when the geometry can be lightened without losing strength — and it usually also shortens cycle time, which lowers unit cost twice.

The grade decision belongs on the drawing with the property target, so the supplier quotes the grade the application needs rather than a conservative default. When in doubt, a short functional note on the RFQ — “gear, wear application, no corrosion exposure” — lets engineering propose the most cost-effective grade for review.

6. Audit secondary operations

Secondary operations are the hidden cost driver in most MIM/PM programs. The as-molded part may be 80 percent complete, and the remaining 20 percent of features — a tapped hole, a sealing bore, a deburred edge — can double the unit cost if they were not planned for.

Deburring and tumbling Bulk processes that remove parting-line flash and soften edges. Inexpensive when the whole part can be run in bulk; expensive when parts must be handled individually.
CNC finishing Turning, milling, drilling or tapping on critical features. Scope should be limited to the features that genuinely need it, and designed so the operation is simple and repeatable.
Heat treatment Adds a controlled hardness or strength condition. Cost is driven by grade, target band and batch handling, not by part complexity — so batch size planning matters.
Surface finishing and plating Passivation, coating or polishing for corrosion, wear or appearance. Like machining, the drawing should define exactly which faces are treated and how the result is verified.

The audit question for every feature is simple: does this feature have to exist, and does it have to be machined? Features that can be molded — threads with fine pitch limits, undercuts with draft, cosmetic faces without tight roughness — remove a per-part cost that repeats for the life of the program.

7. Design for tooling efficiency

Tooling cost tracks the number of actions, the steel complexity and the expected life — not the size of the part alone. A few design choices made early have an outsized effect on the tool quote:

  • Minimize cavity actions: every slide, lifter or core pull adds moving steel and wear points. Ask whether the undercut can be redesigned, molded with a standard action, or left for a simple secondary operation.
  • Plan the parting line: a flat parting line keeps the tool simple; a complex three-dimensional parting line increases build and maintenance cost. The parting line should fall where flash is acceptable and function is unaffected.
  • Design for ejection: draft and surface finish on ejection surfaces reduce reject risk. A part that sticks in the cavity costs tooling time and rejects across the whole program.
  • Match tool life to volume: a 500,000-part program needs hardened tool steel and a documented maintenance plan; a 20,000-part pilot may not. Stating the volume lets the tool be built for the right life.

Tooling efficiency is a dialogue, not a one-way instruction. When SINTS reviews a drawing before quoting, the engineering feedback often includes a small geometry change that removes a tool action or a tolerance that removes an inspection step — changes that cost nothing on the drawing and save money in every part.

8. Prepare a cost-ready RFQ

A cost review is only as good as the information behind it. The checklist below is what SINTS engineering looks for when comparing MIM, PM, CNC and hybrid routes:

  • Drawing or CAD file with material grade and condition.
  • Annual volume and forecast horizon — the basis for tooling amortization and route selection.
  • Critical dimensions identified, with the measurement method and sample plan.
  • Finish, hardness and coating requirements on the faces that need them.
  • Inspection documents required (FAI, dimensional report, material certificate).
  • Target timing and packaging needs so the process and logistics plan can be priced.

With these details, SINTS can compare the routes, explain the main cost drivers and propose a tooling and process plan before any tooling investment is approved. The goal is a quotation that reflects the real requirement — not a worst-case risk allowance.

9. When SINTS helps you decide

The lowest-cost route for a small metal part is rarely obvious from the drawing alone. It depends on the interaction between geometry, volume, material, tolerances and secondary operations — which is exactly the review SINTS performs before quoting.

For OEM programs, the most efficient step is to send the drawing with a short note on annual volume and how the part is used. SINTS engineering reviews the part against MIM, PM, CNC and hybrid options, identifies the cost drivers, and proposes the most economical combination of process, grade and secondary operations before tooling is approved. Programs already locked to a process still benefit from the review: the focus shifts to geometry, tolerances and inspection scope, where most cost reduction is actually found.

Have a drawing and an annual volume?

Send both to our engineering team for a route and cost review. SINTS compares MIM, PM, CNC and hybrid options, explains the main cost drivers, and proposes the most economical plan before tooling approval.

Send Drawing for Review

Frequently Asked Questions

Practical answers for OEM sourcing and engineering teams.

What drives MIM and PM unit cost?

Unit cost is mainly affected by material, cycle time, annual volume, tooling amortization, secondary operations, inspection and packaging requirements.

How can a drawing reduce tooling cost?

Uniform walls, practical draft, fewer complex slides, clear datums and realistic critical tolerances make tooling and process planning more predictable and lower both tool cost and risk.

When should CNC remain the preferred route?

Low-volume work, prototypes, highly variable geometry or features requiring extensive secondary machining may remain better suited to CNC or a hybrid route.

Does higher volume always make MIM cheaper?

No. Volume makes tooling amortization more attractive, but the part must also be suited to MIM: small, complex three-dimensional geometry with materials that respond well to the process. Volume alone does not justify the tool.

What is the cheapest secondary operation to avoid?

Unplanned CNC work on features that were not designed for the as-molded condition. Every bore, thread, datum and tight tolerance that can be designed out of secondary machining removes a per-part cost that repeats for the life of the program.

What should an OEM send for a cost review?

Send the drawing or CAD file, material, annual volume, forecast horizon, critical dimensions, finish, hardness, inspection documents, target timing and packaging needs so the supplier can compare routes and price the real requirement.
