Engineering examples for manufacturing-route selection

Three notes are real-part reviews built from actual drawings or quotation records, anonymised at the customer's request. Three are illustrative engineering reviews. No achieved cost, yield or delivery result is claimed in any of them.

Each note starts from a different bottleneck and shows what has to be checked before a route is changed — geometry, material, density, tolerances, volume and validation.

Send a Drawing →Compare Processes
SINTS dimensional inspection and engineering review
Process Evaluation

Six examples, six different manufacturing questions

The point is not that MIM or PM always wins. Each example starts with a different bottleneck and shows what must be checked before changing the route.

0.4 g AISI 420 Blade: Heat Treatment & Edge

From a real quotation for a hardened blade: why a cryogenic step and a double temper sit behind HRC 48-52, and why the edge specification has to be measured after the polish, not before.

Read case note →

17-4PH H1025 Part: Aging, Distortion & Magnetism

From a real quotation for a 1.2 g MIM structural part: what the aging condition decides, where distortion lands, and why 17-4PH is magnetic where 316L is not.

Read case note →

304 Flanged Threaded Bushing: Real-Part PM Review

Based on an actual drawing at 73,560 pcs a year: why density at ≥7.0 g/cm³ decides whether the M18×1 thread can be rolled, and the three drawing callouts that moved the route and the price.

Read case note →

17-4PH Lock Cam: CNC → MIM Evaluation

When complex profile, repeat volume and selective critical dimensions may justify moulding most features and finishing only what matters.

Read case note →

316L Instrument Jaw: Geometry & Validation

How serrations, undercuts, surface condition and alignment requirements affect a MIM-versus-machining decision.

Read case note →

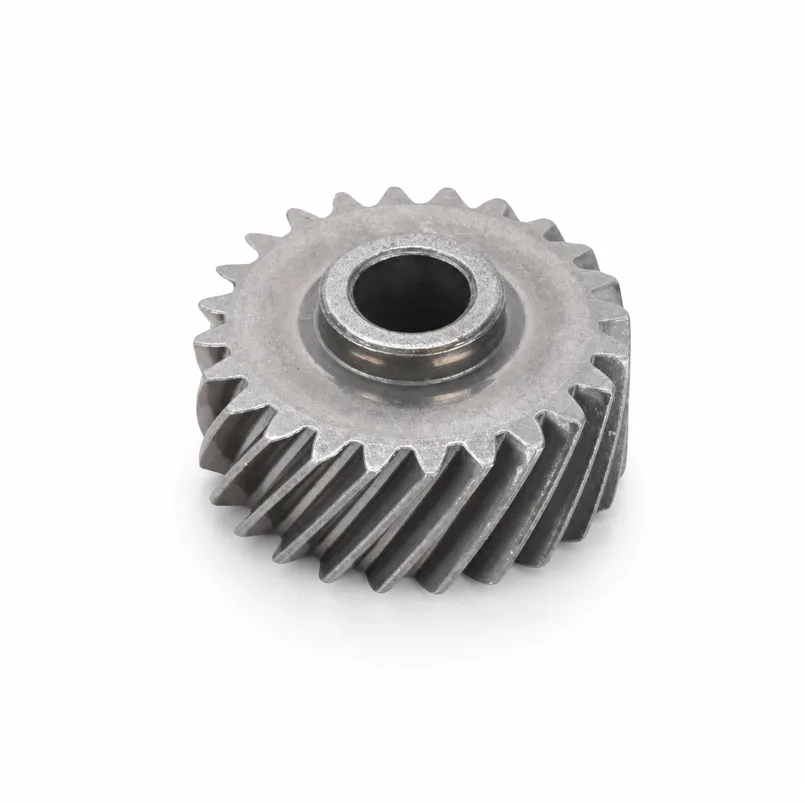

Power-Tool Gear: PM & Sinter-Hardening Review

How density, tooth loading, hardness and secondary operations shape the shortest qualified production route.

Read case note →
Decision Logic

When a conversion is worth modelling

Strong candidate

Repeat production, complex geometry, high machining content and a limited number of truly critical dimensions.

Worth modelling

The part has a mix of mouldable/sinterable features and a few surfaces that can be finished after sintering.

Poor candidate

Prototype or low volume, frequent design changes, large geometry, or a drawing dominated by tight tolerances everywhere.

Want us to evaluate your actual drawing?

We will compare process fit first. If machining remains the better route, we will say so.
