Product Overview
A pneumatic fork connects or guides a moving member through a pin or contact interface.

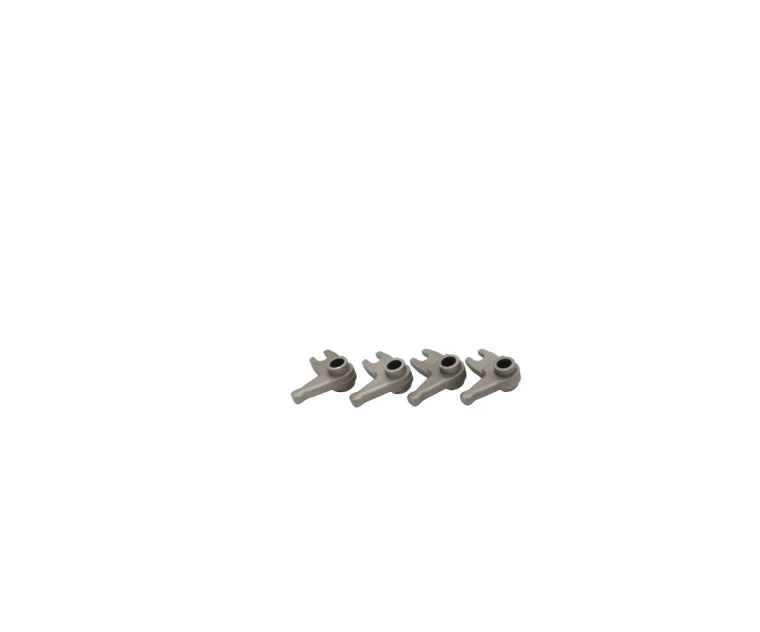

The reference shows small open-ended forms whose section and connection geometry must be reviewed together.
Structure & Mating Interfaces
Provide the mating pin, fork opening, movement range and load direction.
Confirm whether the requested material designation applies to the new project and in which condition.
Engineering Focus
Why relate fork spacing to the mating pin and movement?
The open end works with a pin or another moving member, so spacing is one part of an assembled interface.
The pin fit, contact geometry and travel define the rest.
Reviewing them together makes the inspection requirements meaningful for the actual mechanism.
Manufacturing Route & Finishing
Compare MIM, machining and other suitable routes for the fork geometry.
Pin holes and working contacts may need finishing; narrow sections need a practical support and inspection plan.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Define material and final treatment against load direction, wear and the operating environment.
Mark surfaces whose fit or contact changes after finishing.
Rated loads, pressure limits and operating life require their own agreed design and acceptance requirements.
Review material-selection information →Quality & Sample Approval
Check pin fit, fork spacing, contact edges and motion through the specified range.
Include final material and surface requirements in sample approval.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Is the SS440 label enough to specify the fork material?
No. Confirm the exact material specification and final condition; the broad label does not define all project requirements.
Why relate fork spacing to the mating pin and movement?
The open end works with a pin or another moving member, so spacing is one part of an assembled interface. The pin fit, contact geometry and travel define the rest. Reviewing them together makes the inspection requirements meaningful for the actual mechanism.
How should the part be checked in the tool or mechanism?
Check pin fit, fork spacing, contact edges and motion through the specified range. Include final material and surface requirements in sample approval.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
