Product Overview

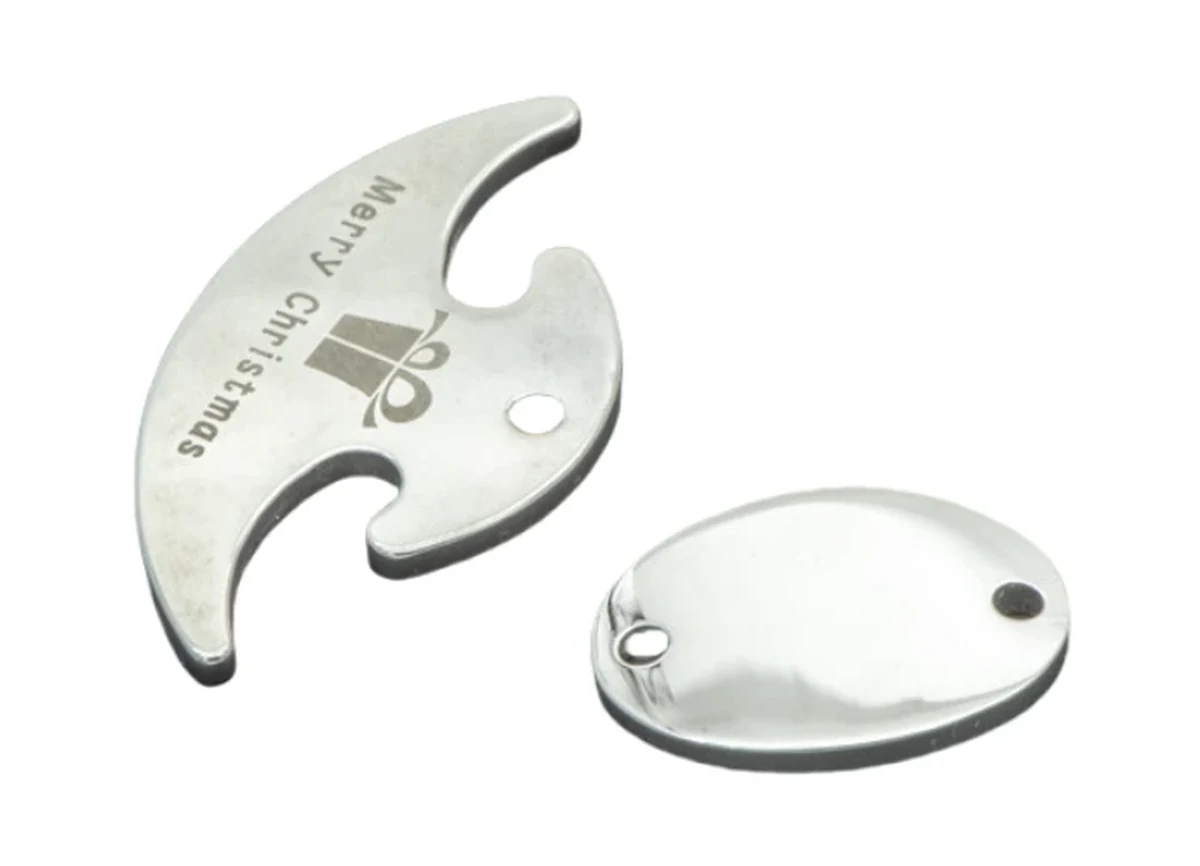

Badge-like and profiled metal components combine an exterior outline with attachment or locating features.
The tungsten-steel description is ambiguous and requires clarification before material selection.
Structure & Mating Interfaces
Specify the mounting features, visible contours and any engraving area.
Distinguish decorative use from a structural or wear-related function.
Engineering Focus
Why clarify whether a profile part is decorative or functional?
A decorative outline and a working contact profile can look similar while requiring different materials and checks.
Identifying the role determines whether appearance, mounting or a specified mechanical property controls acceptance.
The trade description should not replace that definition.
Manufacturing Route & Finishing
Compare forming, cutting and machining after confirming the actual material specification.
A trade name alone is not enough to select powder processing or a finishing method.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the actual alloy or functional material requirements rather than relying on color or a trade name.
Specialty material requests need an individual process review.
Define visible surfaces, contact requirements and final dimensions in the delivered condition.
Review material-selection information →Quality & Sample Approval
Check outline, mounting fit, edges and appearance against approved references.
Where material properties matter, specify the test and documentation rather than relying on the catalog name.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
What should replace an ambiguous material trade name in the RFQ?
Provide a recognized material specification, required composition or functional property requirements for engineering review.
Why clarify whether a profile part is decorative or functional?
A decorative outline and a working contact profile can look similar while requiring different materials and checks. Identifying the role determines whether appearance, mounting or a specified mechanical property controls acceptance. The trade description should not replace that definition.
What should the project acceptance plan include?
Check outline, mounting fit, edges and appearance against approved references. Where material properties matter, specify the test and documentation rather than relying on the catalog name.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
