Product Overview

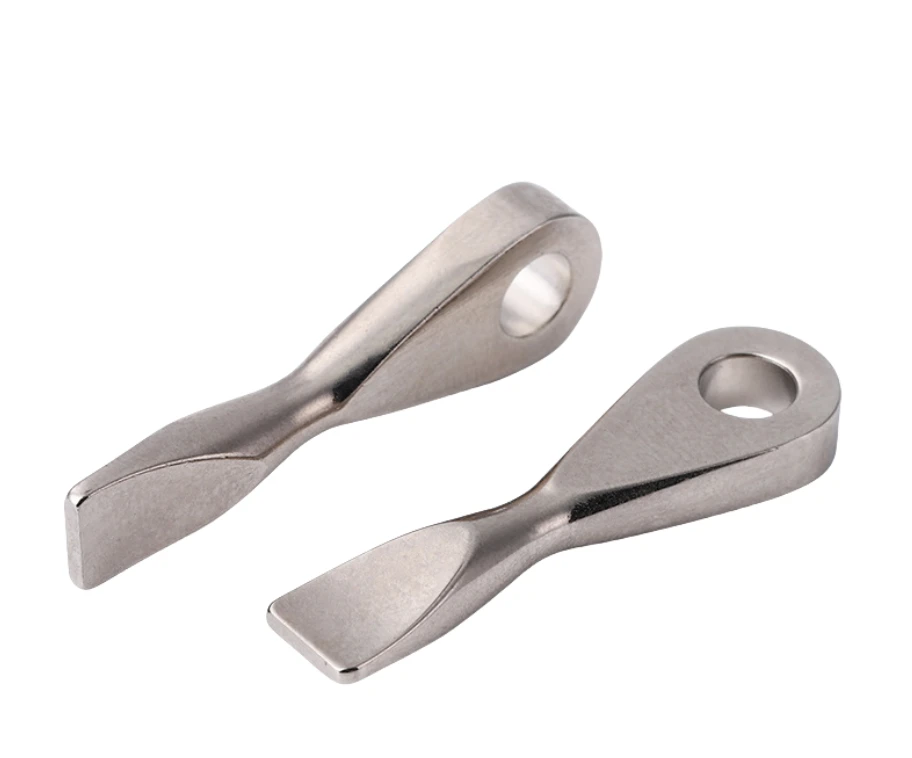

Structural links and eye-ended forms transfer load between connected members.
The reference shows shaped ends and openings that should be reviewed as part of the complete load path.
Structure & Mating Interfaces
Provide the mating pins, load directions and the relationship between the eyes and contact surfaces.
Mark any geometry that positions the link in the assembly.
Engineering Focus
Why review a link's eyes as a connected geometry?
The eyes locate the link between mating members and establish its orientation in the assembly.
Their relationship matters alongside the dimensions of each opening.
Reviewing the connected geometry helps distinguish individual hole conformity from the required assembled position.
Manufacturing Route & Finishing
Compare powder forming, machining and other suitable routes for the section changes and quantity.
Pin fits and load-bearing contacts may need final operations.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the actual alloy or functional material requirements rather than relying on color or a trade name.
Specialty material requests need an individual process review.
Define visible surfaces, contact requirements and final dimensions in the delivered condition.
Review material-selection information →Quality & Sample Approval
Check eye geometry, alignment, contact fit and the specified material condition.
Agree the load or cycle verification with the actual assembly requirements.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Can eye spacing alone define a structural link?
No. Pin fits, section geometry, orientation and loading also determine the part's functional requirements.
Why review a link's eyes as a connected geometry?
The eyes locate the link between mating members and establish its orientation in the assembly. Their relationship matters alongside the dimensions of each opening. Reviewing the connected geometry helps distinguish individual hole conformity from the required assembled position.
What should the project acceptance plan include?
Check eye geometry, alignment, contact fit and the specified material condition. Agree the load or cycle verification with the actual assembly requirements.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
