Product Overview
Controller buttons combine a user-facing surface with features that guide travel and retain the button in the housing.

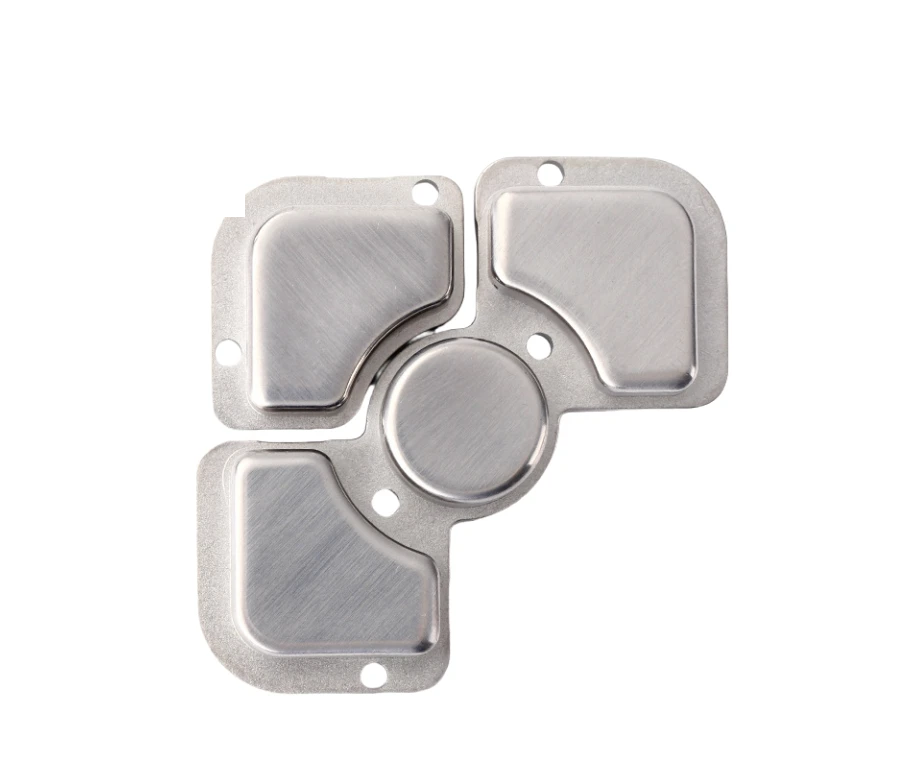

The illustrated metal button shapes are a related reference, not a branded controller specification.
Structure & Mating Interfaces
Define the keycap outline, guide features, travel limits and connection to the switch or mechanism.
Symbols and visible finishes are separate customer-defined requirements.
Engineering Focus
Why separate button travel from cosmetic shape?
The exterior face is the user's contact surface, but the guide and stop features determine how the button moves.
A cosmetic match does not confirm either travel or retention.
The drawing should make the operating features visible alongside the appearance requirements.
Manufacturing Route & Finishing
Compare MIM or machining for the guide and retention geometry.
The finishing sequence must preserve sliding clearances and avoid unwanted edge rounding at functional features.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Define base material, final condition and cosmetic finish separately.
Identify visible faces, permitted edge rounding and the dimensions that must be met after finishing.
Any magnetic, electrical or acoustic requirement needs its own specification.
Review material-selection information →Quality & Sample Approval
Check housing clearance, return movement, retention and agreed visual appearance.
Evaluate the button with the actual switch and surrounding housing.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Are controller symbols or brand markings included?
No. Any marking, layout and approval must be supplied for the specific project; the component reference does not authorize branded reproductions.
Why separate button travel from cosmetic shape?
The exterior face is the user's contact surface, but the guide and stop features determine how the button moves. A cosmetic match does not confirm either travel or retention. The drawing should make the operating features visible alongside the appearance requirements.
How are appearance and functional fit checked?
Check housing clearance, return movement, retention and agreed visual appearance. Evaluate the button with the actual switch and surrounding housing.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
