Product Overview
Ring and cover components can enclose or locate elements within a personal-care device.

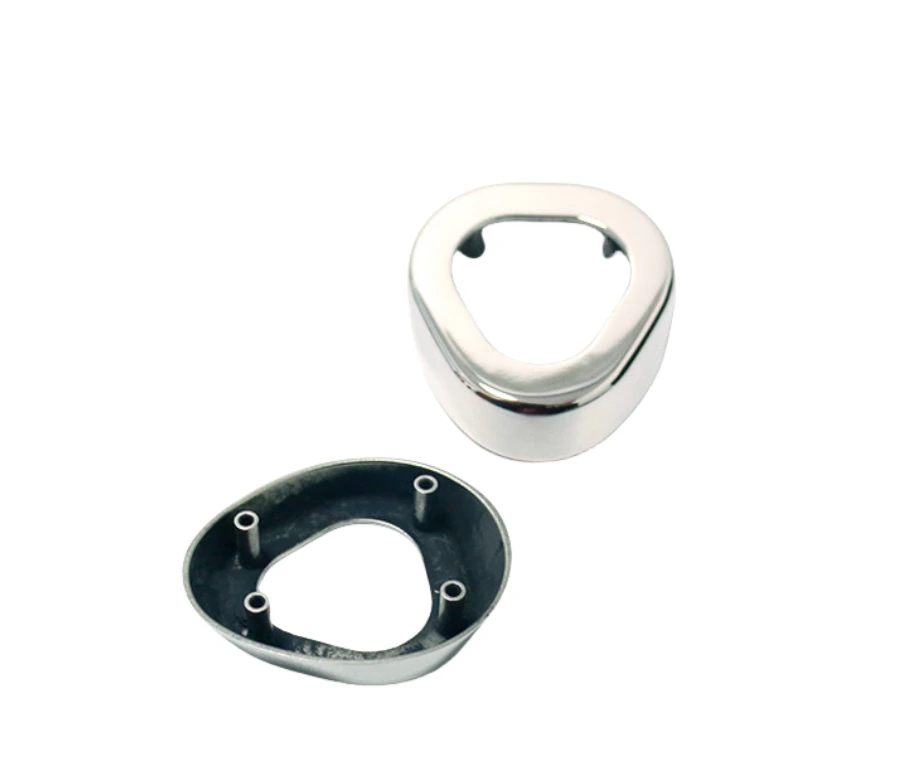

The catalog reference illustrates shell-like parts rather than a complete powered device.
Structure & Mating Interfaces
Specify the internal envelope, connection to the housing and surfaces exposed to the user.
Openings, attachment points and mating steps should be dimensioned from assembly datums.
Engineering Focus
Why distinguish exterior trim from a structural housing?
A trim ring may be judged mainly on appearance and attachment, while a structural housing also locates or supports internal parts.
The same external outline does not imply the same inspection requirements.
Defining the role prevents cosmetic approval from replacing a necessary fit check.
Manufacturing Route & Finishing
Compare molding or casting with machining for the wall geometry and quantity.
Visible faces and locating seats may require different finishing sequences, especially where appearance and fit overlap.
The proposed route is confirmed for your drawing, material and quantity. An image does not establish a fixed tolerance or a complete process specification.
Compare manufacturing capabilities →Materials & Surface Requirements
Specify the actual alloy or functional material requirements rather than relying on color or a trade name.
Specialty material requests need an individual process review.
Define visible surfaces, contact requirements and final dimensions in the delivered condition.
Review material-selection information →Quality & Sample Approval
Check seating, gap to the surrounding housing, edges and finish consistency.
Define contact, cleaning and assembly requirements for the actual device.
Specify the drawing revision and the condition in which each dimension is inspected. Record the agreed dimensional and functional checks before sample approval.
Quality documentation →Prepare a Product-Specific RFQ
- Component definition. Send the 2D drawing and 3D model, where available, with the drawing revision and the requested part or assembly scope.
- Mating information. Include the assembly references needed to define the interfaces discussed above.
- Delivered condition. State material, finishing and inspection requirements, identifying any items that need a manufacturing recommendation.
- Supply plan. Include sample needs, expected order and annual quantities, packaging requirements and target timing.
Product Questions
Does the reference include the motor or electronics?
No. The page concerns metal hardware; identify the individual components required when requesting a quotation.
Why distinguish exterior trim from a structural housing?
A trim ring may be judged mainly on appearance and attachment, while a structural housing also locates or supports internal parts. The same external outline does not imply the same inspection requirements. Defining the role prevents cosmetic approval from replacing a necessary fit check.
What should the project acceptance plan include?
Check seating, gap to the surrounding housing, edges and finish consistency. Define contact, cleaning and assembly requirements for the actual device.
Technical Context
The product-specific notes above identify drawing-review questions. General process and material references are collected separately; they do not verify a material grade, production qualification or performance claim for the pictured part.
Manufacturing and material references →
